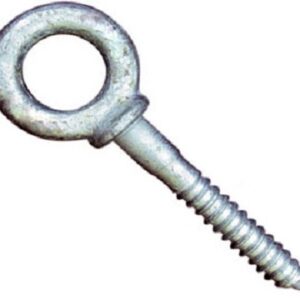

An eye bolt is a bolt with a loop at one end. They are used to firmly attach a securing eye to a structure, so that ropes or cables may then be tied to it. Machinery eye bolts are fully threaded and may have a collar, making them suitable for use with angular loads up to 45°. Eye bolts without a shoulder should not be used for angular loads. Screw eyes are a screw with a loop on one end and threads on the other end, which is are commonly used to attach cables to objects, for instance attaching a string to the back of a painting to allow the painting to hang from a nail on a wall. Long-shanked screw eyes are termed ‘vine eyes’ and are used to attach support wires to wooden fence posts when growing soft fruit or grape vines, the plants then being tied to the wires.
-

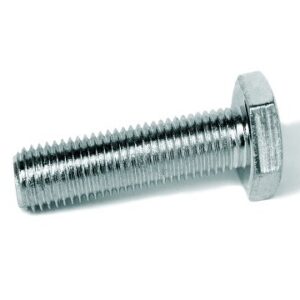

Hex bolts are a very common choice when it comes to construction and repair. Hexagon screw head bolts come in a large variety of sizes and diameters. The best way to choose the right hex bolt is to find the bolt material that best suits your needs. Each different hex bolt material has particular properties to fit specific applications. Hexagon screw head bolts are made from a variety of materials to accommodate the wide range of applications in which hex cap bolts are used.
-

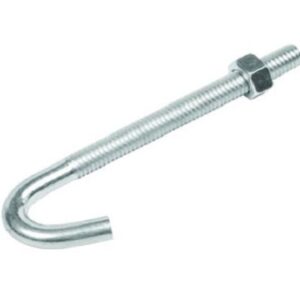

J-bolts are considered for pipe fastening on supporting construction. Based on customer wish could be collected with hex nuts, flat washer, spring washer. Use of bars with lesser diameter of thread is also available upon customer agreement
-

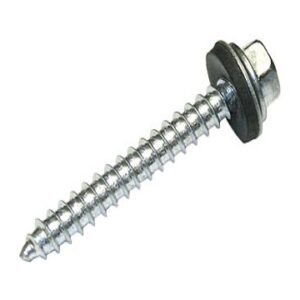

Lag bolts are often referred to as lag screws. Lag bolts are not like other bolts. They look like a screw rather than a bolt with their pointed end instead of the more common blunt end found on other bolts. Lag bolts / screws may be made out of steel, stainless steel, silicon bronze, or hot-dipped galvanized to accommodate any and all projects needed. Mostly used in the construction field, lag bolts are also commonly used for a variety of projects in and out of the home. Lag bolts are made from a variety of types and grades to suffice for the abundance of applications lag bolts are used
-

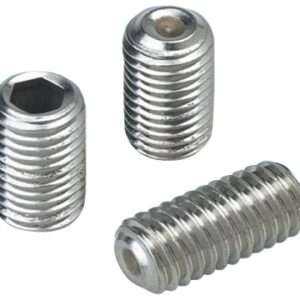

A set screw is a type of screw generally used to secure an object within or against another object, normally not using a nut. The most common examples are securing a pulley or gear to a shaft. Set screws are usually headless, meaning that the screw is fully threaded and has no head projecting past the major diameter of the screw thread. If a set screw has a head, the thread will extend all the way to the head.
-

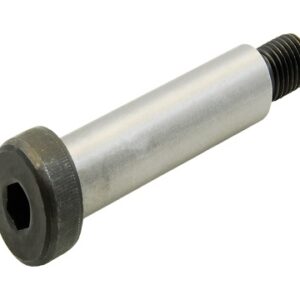

Shoulder bolts are screws with an unthreaded shoulder that is larger in diameter than the threads. Also known as stripper bolts.
-

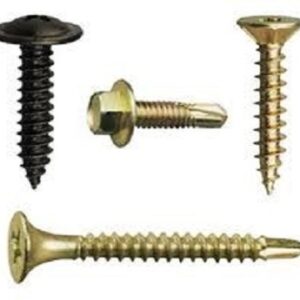

Thread cutting screws are a class of self-tapping screw that create threads in existing holes in metal, and are often used as fasteners in items that need periodic maintenance. Thread cutting screws are most often used with wood and metal and do not generate the same stress as thread forming screws.
-

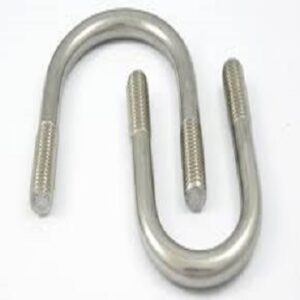

Bolts in U shape for attaching to pipe or other round surfaces. Also available with a square bend.
